Vehicle lifting equipment

2-post lifts

Versatile, space-efficient lifting for professional servicing, inspection and repair bays.

Built for everyday workshop use

Clear access. Reliable lifting. The right fit for your bay.

A 2-post lift gives technicians excellent access to wheels, brakes and the underside of a vehicle while keeping the workshop footprint efficient. We help you select the right configuration for your vehicles, floor, available space and daily workload.

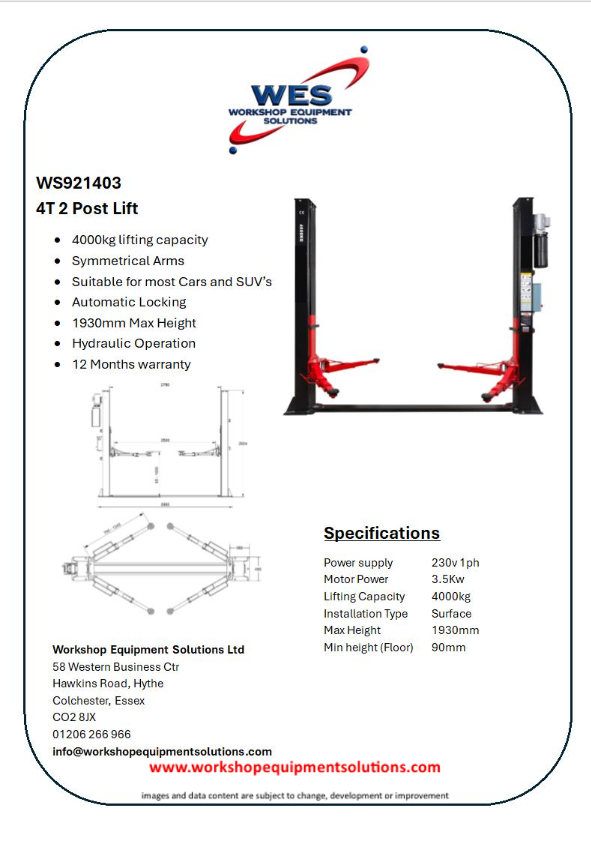

WS921403

4T 2 Post Lift

4000kg lifting capacity
Symmetrical Arms
Suitable for most Cars and SUV’s
Automatic Locking
1930mm Max Height
Hydraulic Operation
12 Months warranty

Specifications

Power supply: 230v 1ph
Motor Power: 3.5Kw
Lifting Capacity: 4000kg
Installation Type: Surface
Max Height: 1930mm
Min height (Floor): 90mm

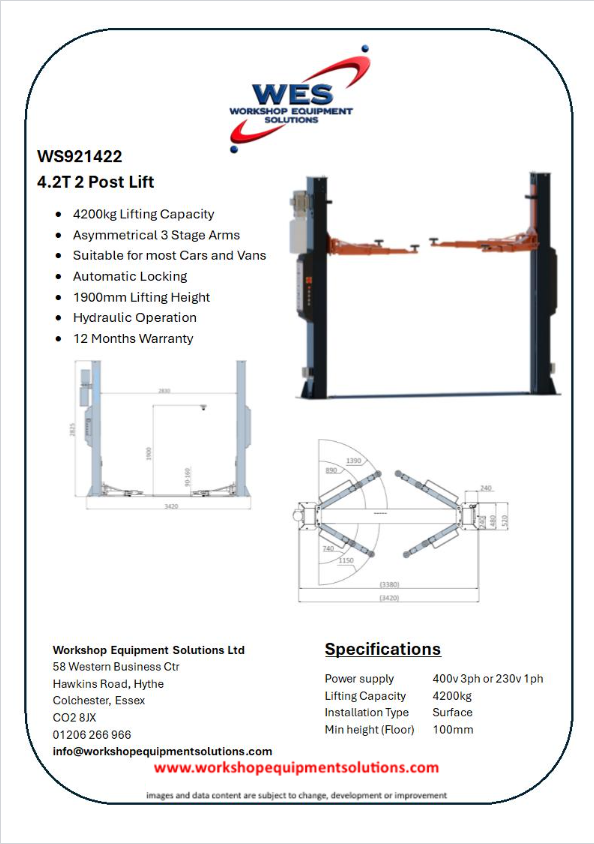

WS921422

4.2T 2 Post Lift

4200kg Lifting Capacity
Asymmetrical 3 Stage Arms
Suitable for most Cars and Vans
Automatic Locking
1900mm Lifting Height
Hydraulic Operation
12 Months Warranty

Specifications

Power supply: 400v 3ph or 230v 1ph
Lifting Capacity: 4200kg
Installation Type: Surface
Min height (Floor): 100mm

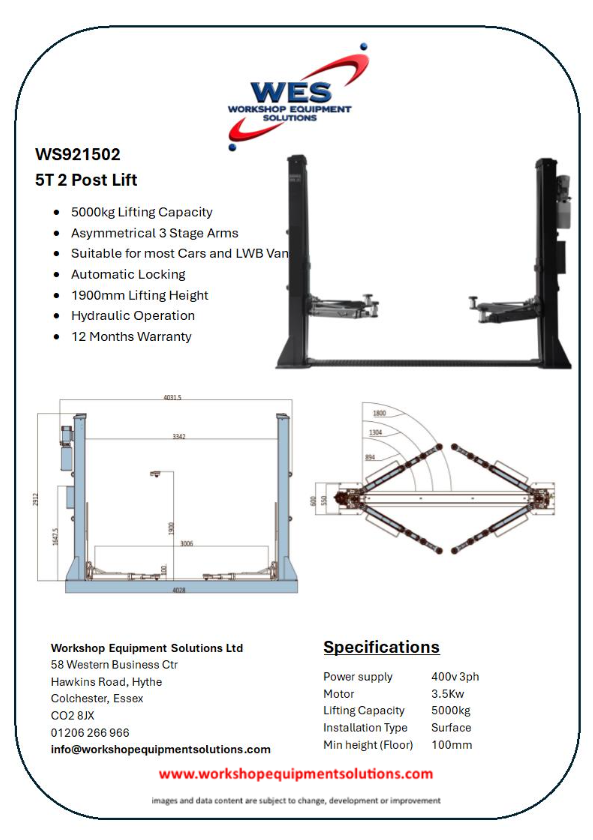

WS921502

5T 2 Post Lift

5000kg Lifting Capacity
Asymmetrical 3 Stage Arms
Suitable for most Cars and LWB Vans
Automatic Locking
1900mm Lifting Height
Hydraulic Operation
12 Months Warranty

Specifications

Power supply: 400v 3ph
Motor: 3.5Kw
Lifting Capacity: 5000kg
Installation Type: Surface
Min height (Floor): 100mm

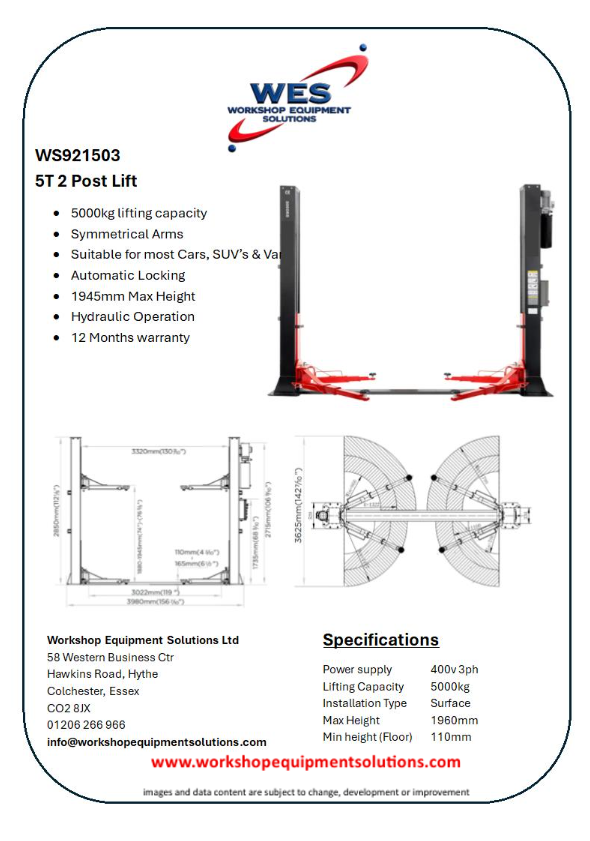

WS921503

5T 2 Post Lift

5000kg lifting capacity
Symmetrical Arms
Suitable for most Cars, SUV’s & Vans
Automatic Locking
1945mm Max Height
Hydraulic Operation
12 Months warranty

Specifications

Power supply: 400v 3ph
Lifting Capacity: 5000kg
Installation Type: Surface
Max Height: 1960mm
Min height (Floor): 110mm

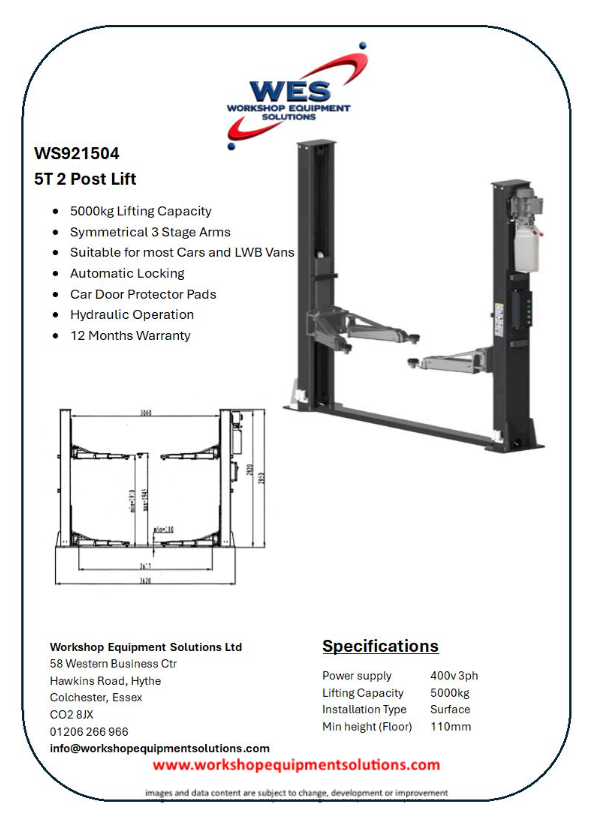

WS921504

5T 2 Post Lift

5000kg Lifting Capacity
Symmetrical 3 Stage Arms
Suitable for most Cars and LWB Vans
Automatic Locking
Car Door Protector Pads
Hydraulic Operation
12 Months Warranty

Specifications

Power supply: 400v 3ph
Lifting Capacity: 5000kg
Installation Type: Surface
Min height (Floor): 110mm

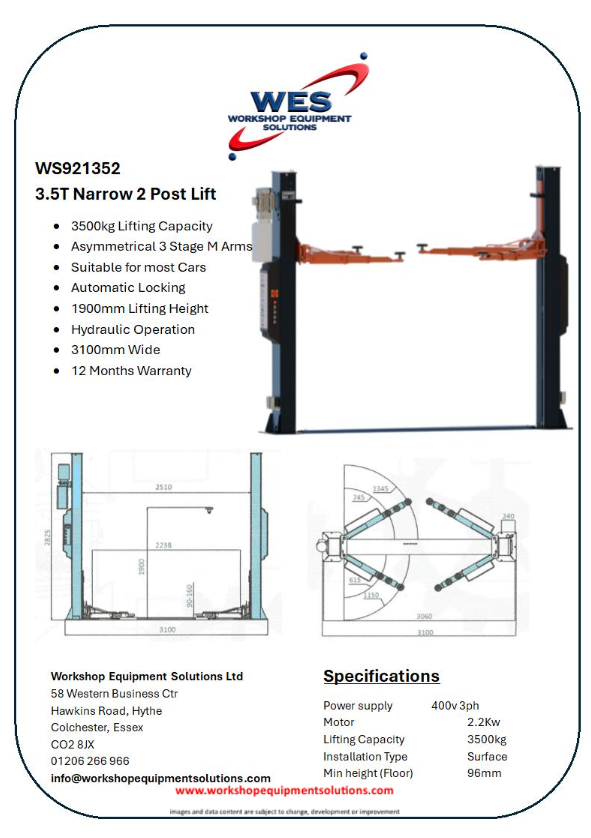

WS921352

3.5T Narrow 2 Post Lift

3500kg Lifting Capacity
Asymmetrical 3 Stage M Arms
Suitable for most Cars
Automatic Locking
1900mm Lifting Height
Hydraulic Operation
3100mm Wide
12 Months Warranty

Specifications

Power supply: 400v 3ph
Motor: 2.2Kw
Lifting Capacity: 3500kg
Installation Type: Surface
Min height (Floor): 96mm

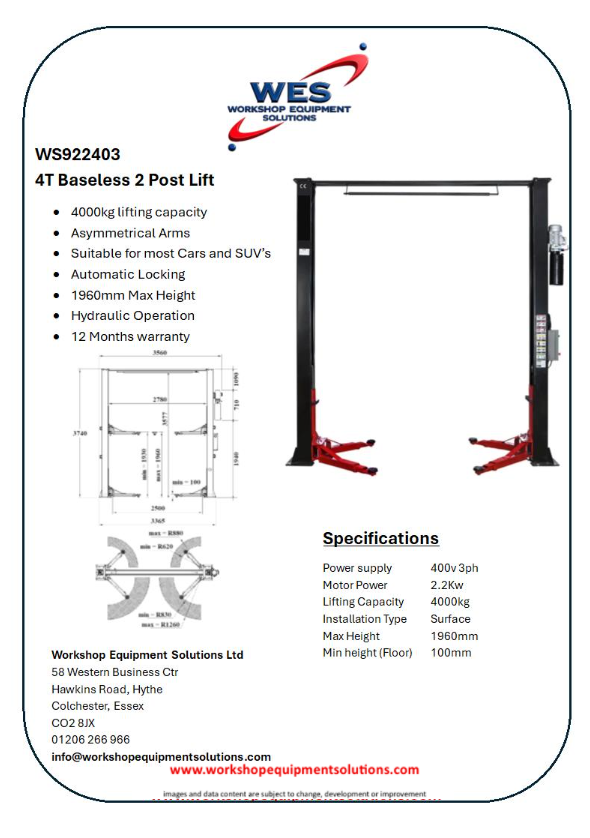

WS922403

4T Baseless 2 Post Lift

4000kg lifting capacity
Asymmetrical Arms
Suitable for most Cars and SUV’s
Automatic Locking
1960mm Max Height
Hydraulic Operation
12 Months warranty

Specifications

Power supply: 400v 3ph
Motor Power: 2.2Kw
Lifting Capacity: 4000kg
Installation Type: Surface
Max height: 1960mm
Min height (Floor): 100mm

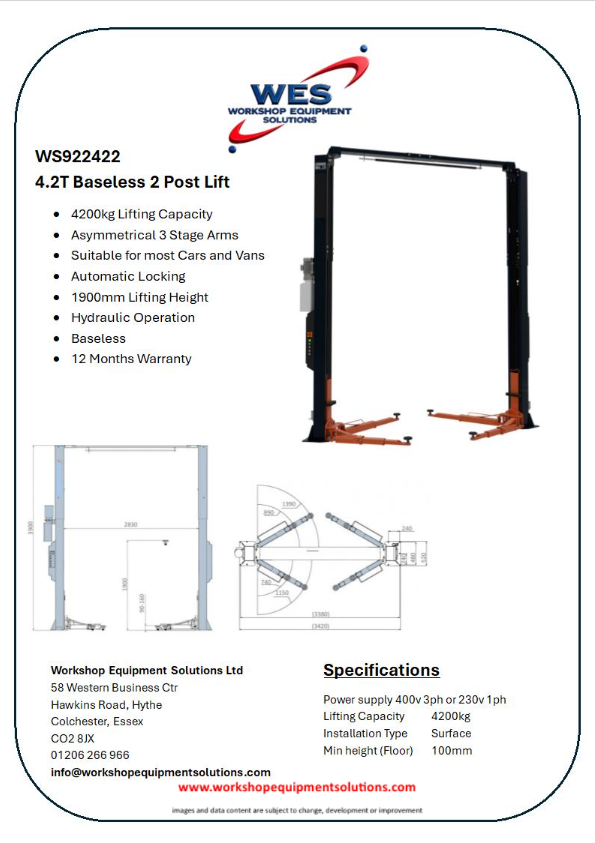

WS922422

4.2T Baseless 2 Post Lift

4200kg Lifting Capacity
Asymmetrical 3 Stage Arms
Suitable for most Cars and Vans
Automatic Locking
1900mm Lifting Height
Hydraulic Operation
Baseless
12 Months Warranty

Specifications

Power supply: 400v 3ph or 230v 1ph
Lifting Capacity: 4200kg
Installation Type: Surface
Min height (Floor): 100mm

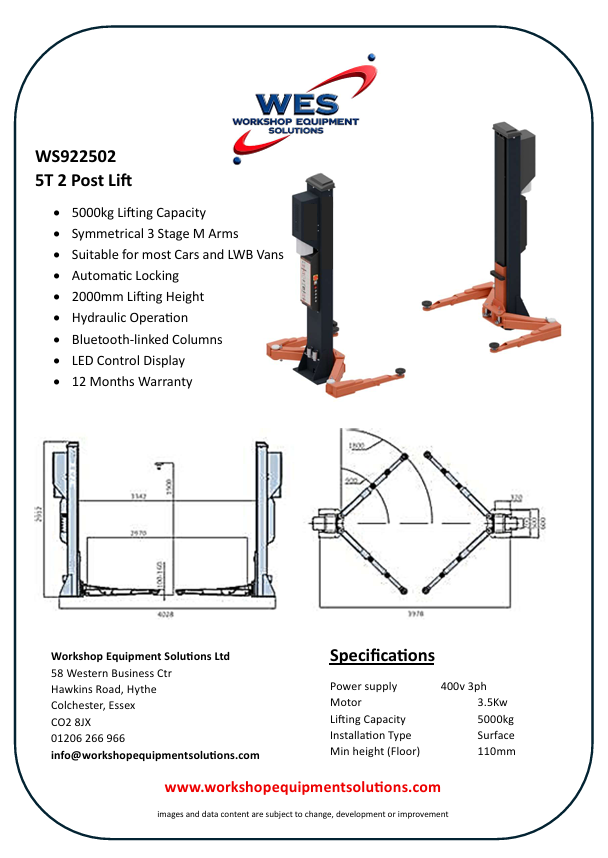

WS922502

5T 2 Post Lift

5000kg Lifting Capacity
Symmetrical 3 Stage M Arms
Suitable for most Cars and LWB Vans
Automatic Locking
2000mm Lifting Height
Hydraulic Operation
Bluetooth-linked Columns
LED Control Display
12 Months Warranty

Specifications

Power supply: 400v 3ph
Motor: 3.5Kw
Lifting Capacity: 5000kg
Installation Type: Surface
Min height (Floor): 110mm

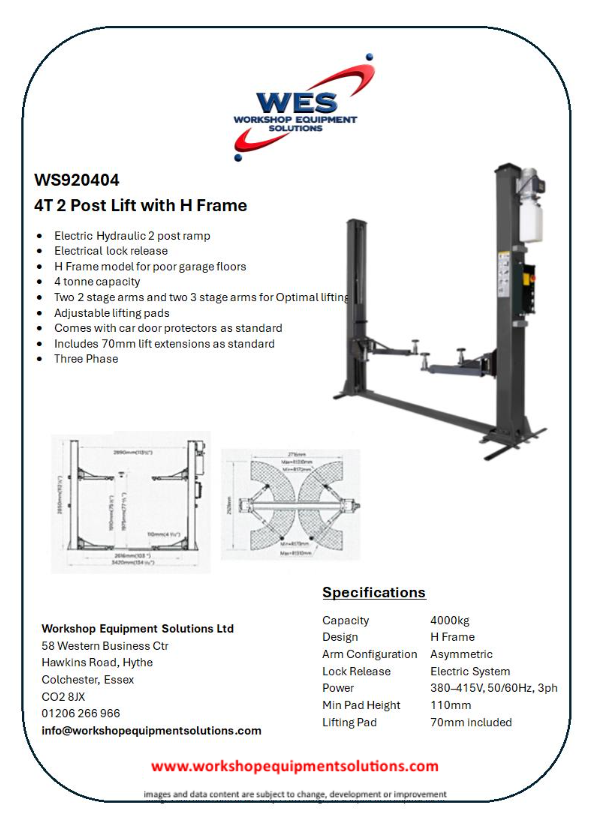

WS90404

4T 2 Post Lift with H Frame

4000kg Lifting Capacity
Electric Hydraulic 2 post ramp
Electical lock release
H Frame model for poor garage floors
Two 2 stage arms and two 4 stage arms for Optimal lifting
Adjustable lifting pads
Comes with car door protectors as standard
Includes 70mm lift extensions as standard
Three Phase

Specifications

Power supply: 380-415v 50/60Hz 3ph
Design: H Frame
Arm Configuration: Asymmetric
Lock Release: Electric system
Min Pad Height: 110mm
Lifting Pad: 70mm Included

Why choose a 2-post lift?

A workshop essential

Excellent access

Open access around the wheels, suspension and underside makes servicing and repair work easier.

Efficient footprint

Two compact columns provide full lifting capability without taking over valuable workshop floor space.

Versatile operation

A practical choice for a wide range of cars and light commercial vehicles when correctly specified.

Specified around your business

Choosing the right lift

Our team will help you consider the details that matter before installation, giving you a solution that works safely and effectively within your workshop.

Vehicle types and lifting capacity
Available bay width and ceiling height
Floor condition and fixing requirements
Symmetric or asymmetric configuration
Electrical supply and installation needs

Supply, installation and support

Let’s find the right 2-post lift for your workshop.

Call 01206 266966 Contact us
