Workshop testing equipment

Brake testers

Professional Class IV and Class VII roller brake testing systems for MOT and ATL workshop installations.

Discuss your requirements

Accurate workshop testing

Dependable results. Workshop-ready control. MOT and ATL options.

Our roller brake testers provide accurate, controlled brake-force measurement for cars, vans and light commercial vehicles, with choices for Class IV and Class VII testing requirements.

Our brake tester range

Choose your tester

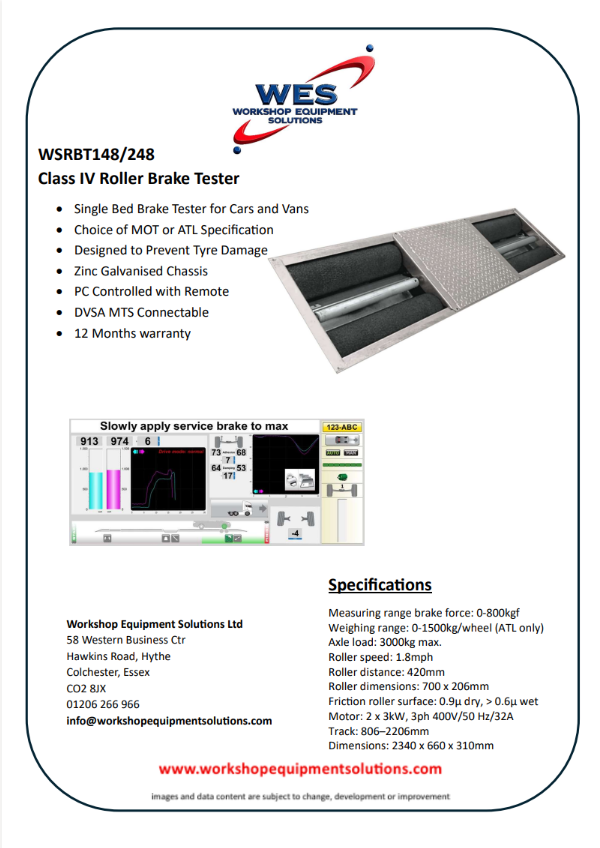

WSRBT148/248

Class IV Roller Brake Tester

  • Single Bed Brake Tester for Cars and Vans
  • Choice of MOT or ATL Specification
  • Designed to Prevent Tyre Damage
  • Zinc Galvanised Chassis
  • PC Controlled with Remote
  • DVSA MTS Connectable
  • 12 Months warranty

Specifications

Measuring range brake force:
0-800kgf
Weighing range:
0-1500kg/wheel (ATL only)
Axle load:
3000kg max.
Roller speed:
1.8mph
Roller distance:
420mm
Roller dimensions:
700 x 206mm
Friction roller surface:
0.9µ dry, > 0.6µ wet
Motor:
2 x 3kW, 3ph 400V/50 Hz/32A
Track:
806–2206mm
Dimensions:
2340 x 660 x 310mm

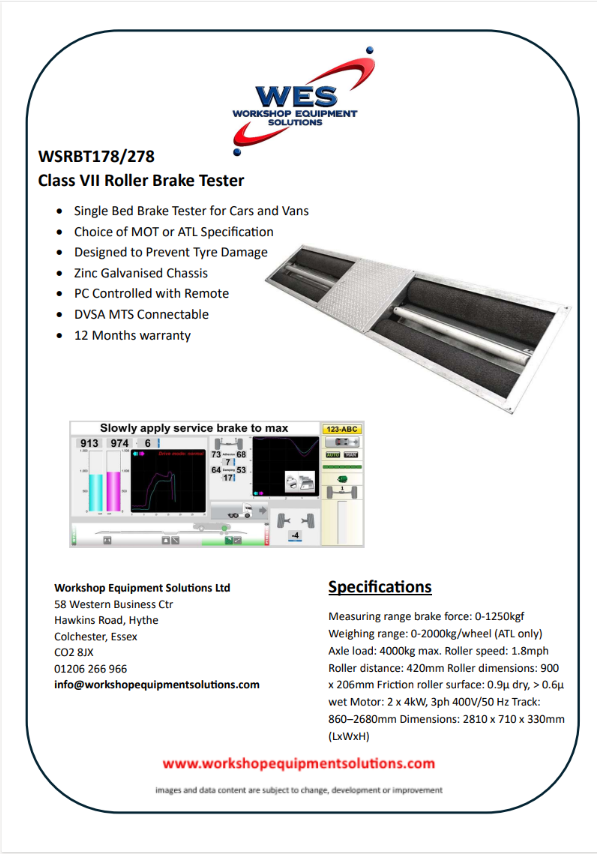

WSRBT178/278

Class VII Roller Brake Tester

  • Single Bed Brake Tester for Cars and Vans
  • Choice of MOT or ATL Specification
  • Designed to Prevent Tyre Damage
  • Zinc Galvanised Chassis
  • PC Controlled with Remote
  • DVSA MTS Connectable
  • 12 Months warranty

Specifications

Measuring range brake force:
0-1250kgf
Weighing range:
0-2000kg/wheel (ATL only)
Axle load:
4000kg max.
Roller speed:
1.8mph
Roller distance:
420mm
Roller dimensions:
900 x 206mm
Friction roller surface:
0.9µ dry, > 0.6µ wet
Motor:
2 x 4kW, 3ph 400V/50 Hz
Track:
860–2680mm
Dimensions:
2810 x 710 x 330mm (LxWxH)

Professional brake testing

Built for dependable testing

MOT or ATL options

Choose a specification that suits your testing lane and workshop operating requirements.

PC controlled

Remote operation and clear on-screen results support a controlled, efficient testing process.

Vehicle coverage

Class IV and Class VII options support cars, vans and light commercial vehicle applications.

Specified around your test lane

Choosing the right tester

Our team will help you assess the vehicle class, axle load, MOT or ATL specification and installation requirements for your workshop.
