Tyre changers

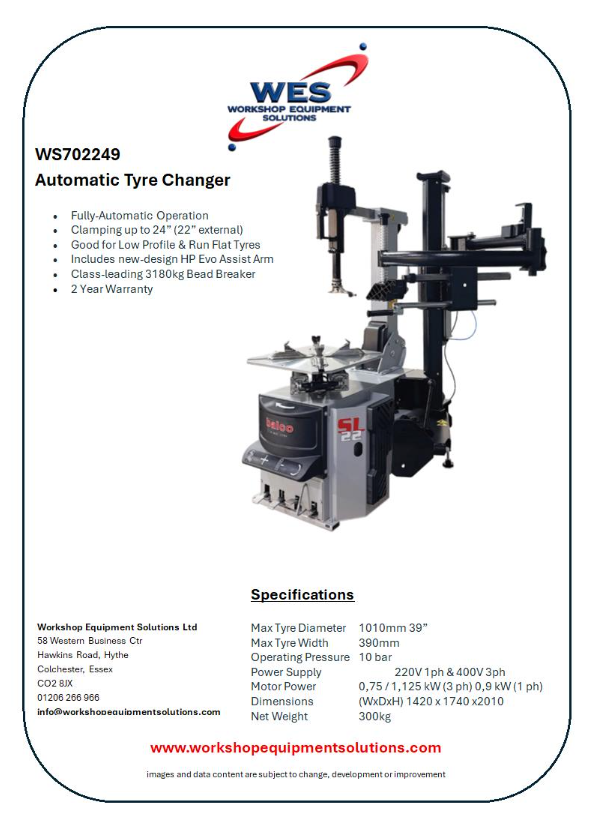

WS702249

Automatic Tyre Changer

• Fully-Automatic Operation
• Clamping up to 24” (22” external)
• Good for Low Profile & Run Flat Tyres
• Includes new-design HP EVO Assist Arm
• Class-leading 3180kg Bead Breaker
• 2 Year Warranty

Specifications

Max Tyre Diameter

1010mm 39"

Max Tyre Width

390mm

Operating pressure

10 hbar

Power Supply

220v 1ph /400v 3ph

Motor Power

0,75 / 1,125kW(3ph) 0,9kW (1ph)

Dimensions

(WxDxH) 1420 x 1740 x 2010

Net Weight

300kg

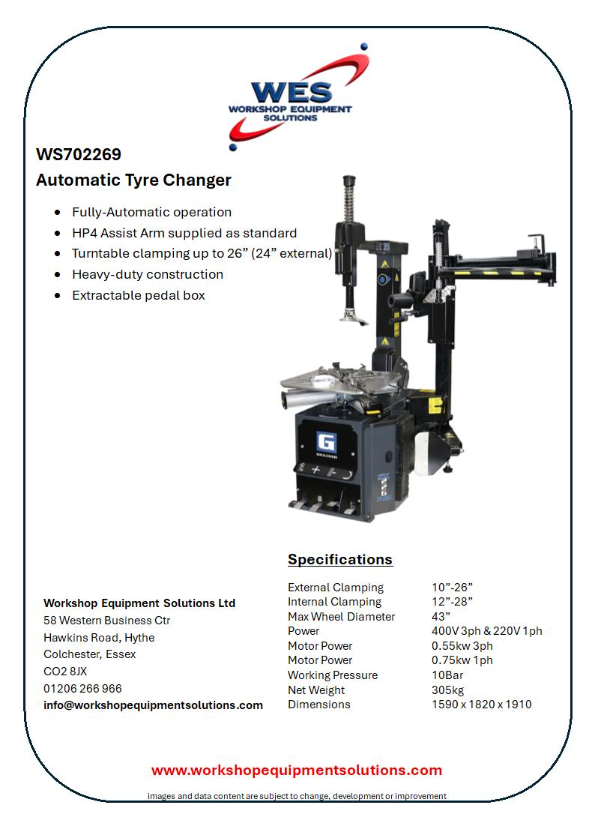

WS702269

Automatic Tyre Changer

• Fully-Automatic operation
• HP4 Assist Arm supplied as standard
• Power X Turntable clamping up to 26” (24” external)
• Heavy-duty construction
• Extractable pedal box

Specifications

External Clamping

10"-26"

Internal Clamping

12"-28"

Max Wheel Diameter

43"

Power

400V 3ph / 220V 1ph

Motor Power

0.55kW 3ph / 0.75kW 1ph

Working Pressure

10 bar

Net Weight

305kg

Dimensions

1590x1820x1920

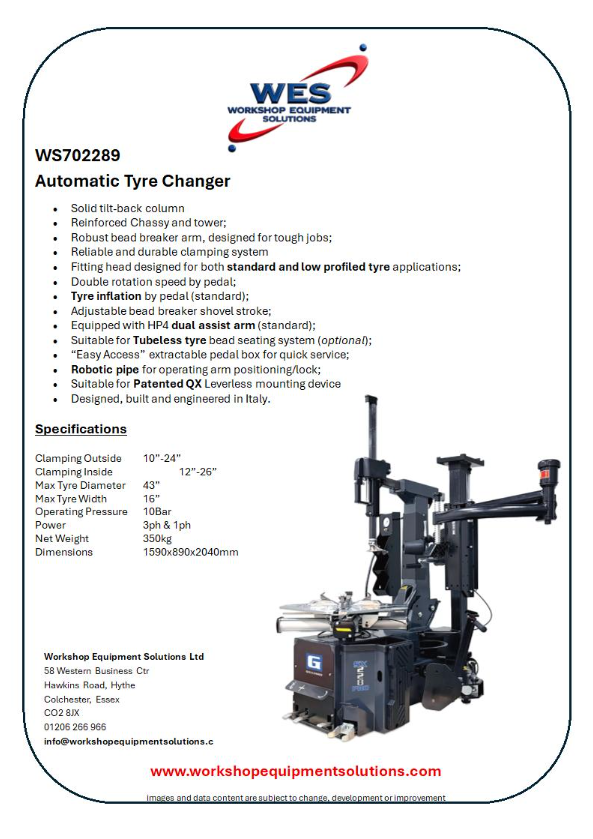

WS702289

Automatic Tyre Changer

• Solid tilt-back column
• Reinforced Chassis and tower;
• Robust bead breaker arm, designed for tough jobs;
• Reliable and durable clamping system
• Fitting head designed for both standard and low profiled tyre applications;
• Double rotation speed by pedal;
• Tyre inflation by pedal (standard)
• Adjustable bead breaker shovel stroke;
• Equipped with HP4 dual assist arm (standard);
• Suitable for Tubeless tyre bead seating system (optional)
• "Easy Access" extractable pedal box for quick service;
• Robotic pipe for operating arm positioning/lock;
• Suitable for Patented QX Leverless mounting device
• Designed, built and engineered in Italy

Specifications

Clamping Outside

10"-24"

Clamping Inside

12"-26"

Max Tyre Diameter

43"

Max Tyre Width

16"

Power

3ph and 1ph

Net Weight

350kg

Dimensions

1590x890x2040mm

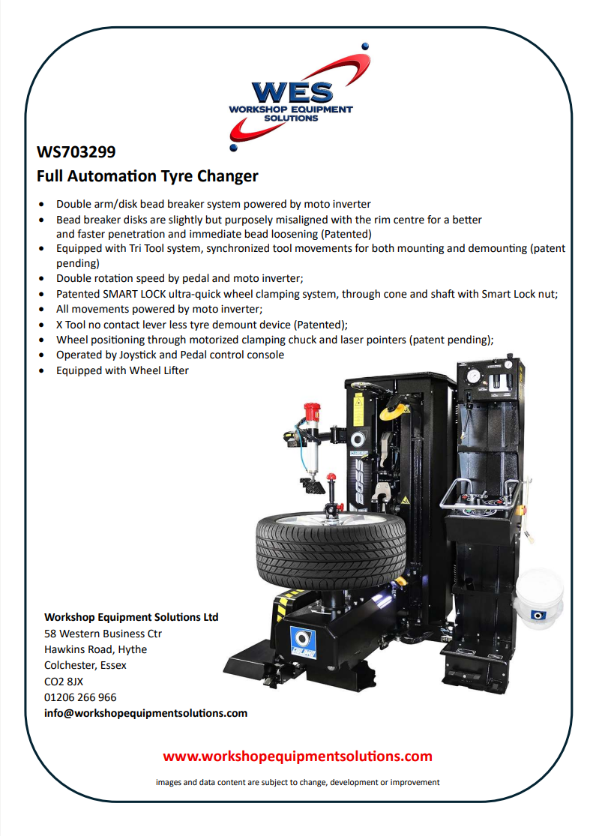

WS703299

Full Automation Tyre Changer

• Double arm/disk bead breaker system powered by moto inverter
• Bead breaker disks are slightly but purposely misaligned with the rim centre for a better and faster penetration and immediate bead loosening (Patented)
• Equipped with Tri Tool system, synchronized tool movements for both mounting and demounting (patent pending)
• Double rotation speed by pedal and moto inverter;
• Patented SMART LOCK ultra-quick wheel clamping system, through cone and shaft with Smart Lock nut;
• All movements powered by moto inverter;
• X Tool no contact lever less tyre demount device (Patented);
• Wheel positioning through motorized clamping chuck and laser pointers (patent pending);
• Operated by Joystick and Pedal control console
• Equipped with Wheel Lifter
