Workshop testing equipment

Headlight testers

MOT-approved beam testing equipment for accurate headlamp alignment across cars, light commercial vehicles and HGV applications.

Discuss your requirements

Accurate beam assessment

Clear alignment. Flexible positioning. MOT-ready testing.

The WSH11 headlamp beam tester combines a spring-balanced optical box with flexible specification options to support fast, controlled headlight testing in professional workshops and MOT lanes.

Our headlight tester

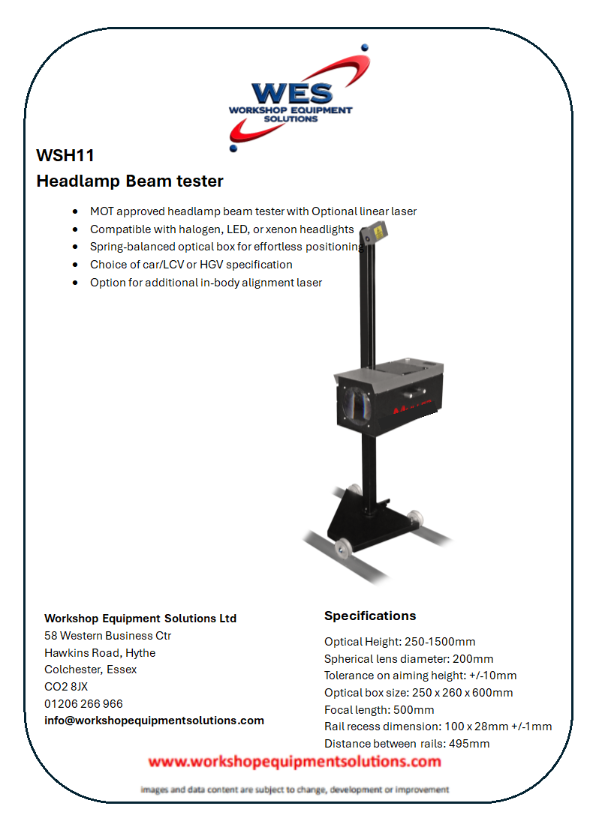

WSH11 beam tester

WSH11

Headlamp Beam Tester

  • MOT-approved headlamp beam tester with optional linear laser
  • Compatible with halogen, LED or xenon headlights
  • Spring-balanced optical box for effortless positioning
  • Choice of car/LCV or HGV specification
  • Option for additional in-body alignment laser

Specifications

Optical height:
250-1500mm
Spherical lens diameter:
200mm
Tolerance on aiming height:
±10mm
Optical box size:
250 x 260 x 600mm
Focal length:
500mm
Rail recess dimension:
100 x 28mm ±1mm
Distance between rails:
495mm

Professional headlight testing

Designed for accurate positioning

Multiple light types

Test halogen, LED and xenon headlights with one professional workshop unit.

Effortless movement

The spring-balanced optical box supports smooth, controlled positioning during testing.

Flexible specification

Choose a car/LCV or HGV setup with optional laser alignment equipment.

Specified for your test bay

Choosing your beam tester

Our team will help you select the right vehicle specification, laser options and installation arrangement for your MOT lane or workshop.

Supply, installation and support

Let’s find the right headlight tester for your workshop.
