Complete DVSA testing solutions
MOT testing
Complete MOT, OPTL and ATL testing packages for Class 1, 2, 4 and 7 vehicles, planned around your workshop.
Discuss your MOT projectComplete test-lane packages
From application and drawings through to installation and certification.
We can supply complete MOT testing solutions with the equipment, workshop layout support and installation services required for a professional DVSA-ready test lane.
Complete MOT capability
Everything your MOT facility needs
Class 4 MOT bays
Class 7 MOT bays
ATL brake tester options
Dual revenue alignment bays
Groundworks coordination
VT01 application support
Headlight & emissions equipment
Installation handover packs
Assistance with DVSA to comply with all legalities
Our MOT testing packages
Choose your test-lane solution

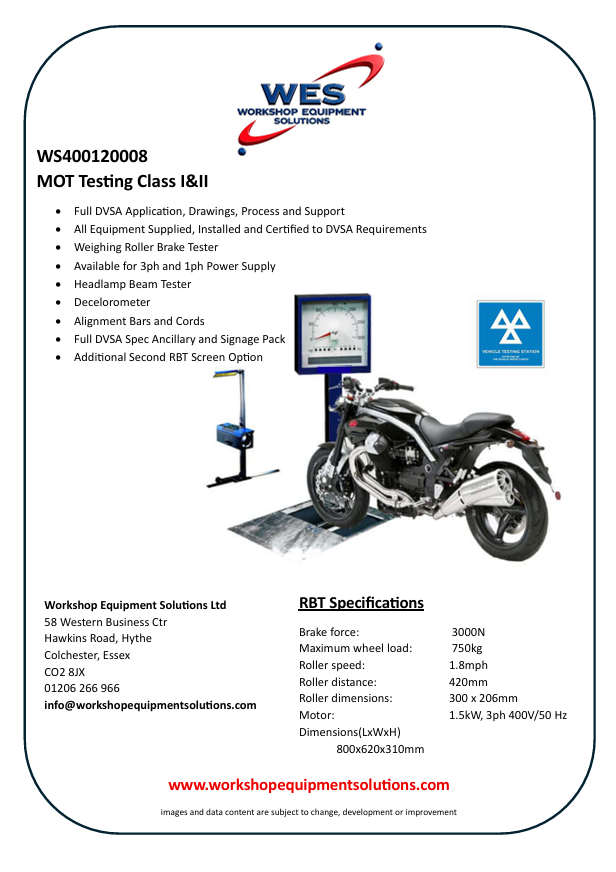

WS400120008
MOT Testing Class I&II
- Full DVSA Application, Drawings, Process and Support
- All Equipment Supplied, Installed and Certified to DVSA Requirements
- Weighing Roller Brake Tester
- Available for 3ph and 1ph Power Supply
- Headlamp Beam Tester
- Decelorometer
- Alignment Bars and Cords
- Full DVSA Spec Ancillary and Signage Pack
- Additional Second RBT Screen Option
RBT Specifications
- Brake force:
- 3000N
- Maximum wheel load:
- 750kg
- Roller speed:
- 1.8mph
- Roller distance:
- 420mm
- Roller dimensions:
- 300 x 206mm
- Motor:
- 1.5kW, 3ph 400V/50 Hz
- Dimensions (LxWxH):
- 800x620x310mm
Complete pit testing package

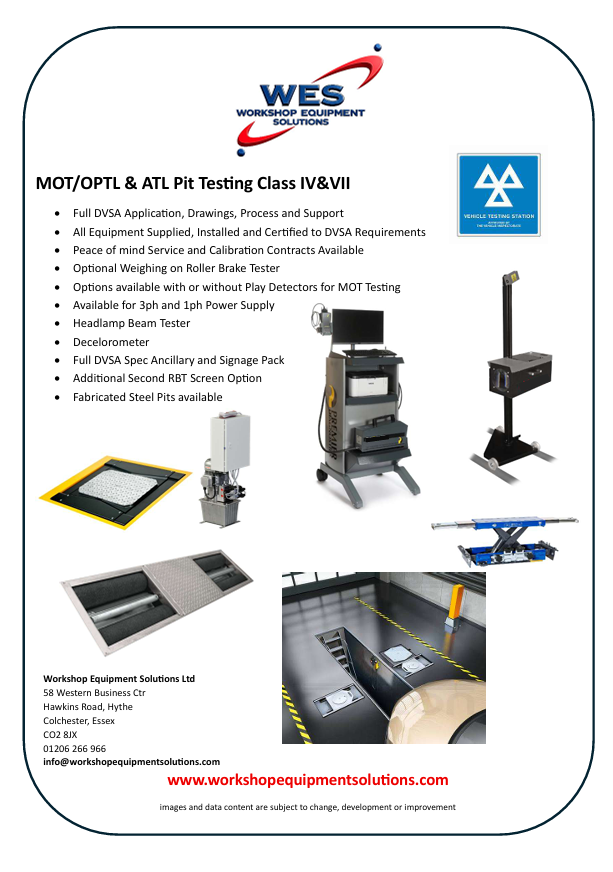

MOT/OPTL & ATL Pit Testing Class IV&VII
- Full DVSA Application, Drawings, Process and Support
- All Equipment Supplied, Installed and Certified to DVSA Requirements
- Peace of mind Service and Calibration Contracts Available
- Optional Weighing on Roller Brake Tester
- Options available with or without Play Detectors for MOT Testing
- Available for 3ph and 1ph Power Supply
- Headlamp Beam Tester
- Decelorometer
- Full DVSA Spec Ancillary and Signage Pack
- Additional Second RBT Screen Option
- Fabricated Steel Pits available
Complete lift testing package

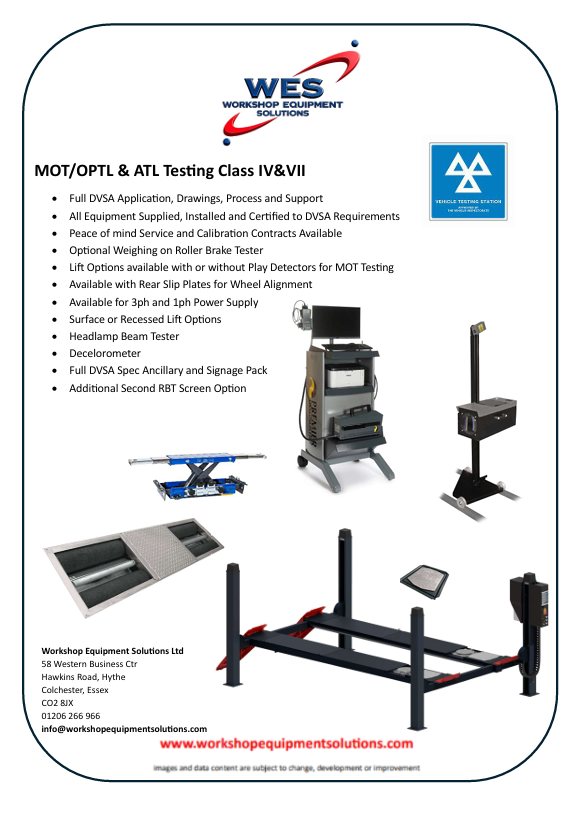

MOT/OPTL & ATL Testing Class IV&VII
- Full DVSA Application, Drawings, Process and Support
- All Equipment Supplied, Installed and Certified to DVSA Requirements
- Peace of mind Service and Calibration Contracts Available
- Optional Weighing on Roller Brake Tester
- Lift Options available with or without Play Detectors for MOT Testing
- Available with Rear Slip Plates for Wheel Alignment
- Available for 3ph and 1ph Power Supply
- Surface or Recessed Lift Options
- Headlamp Beam Tester
- Decelorometer
- Full DVSA Spec Ancillary and Signage Pack
- Additional Second RBT Screen Option
Complete project support
Everything needed for a professional MOT lane
Application and design
Support with the DVSA application, drawings and the complete planning process.
Supply and installation
Equipment supplied and installed as a coordinated package for your chosen test-lane format.
Ongoing support
Service and calibration contract options provide continued peace of mind after installation.
Designed around your workshop
Planning your MOT testing project
Our team will help determine the correct vehicle class, equipment combination, power supply and installation format for your site.
- Class I, II, IV or VII testing
- MOT, OPTL or ATL layouts
- Pit, surface or recessed lift options
- 1ph or 3ph power requirements
- Ancillary equipment and signage
Application, equipment and installation
