Vehicle lifting equipment

4-post lifts

Stable, drive-on lifting solutions for servicing, MOT testing, wheel alignment and commercial workshop applications.

Discuss your requirements

Built around your workshop

Drive-on convenience. Stable lifting. Versatile workshop use.

A 4-post lift provides a stable platform for inspection, MOT testing, alignment and servicing. We help you choose the right capacity, platform length, installation type and options for your vehicles and day-to-day workload.

Our 4-post lift range

Choose your lift

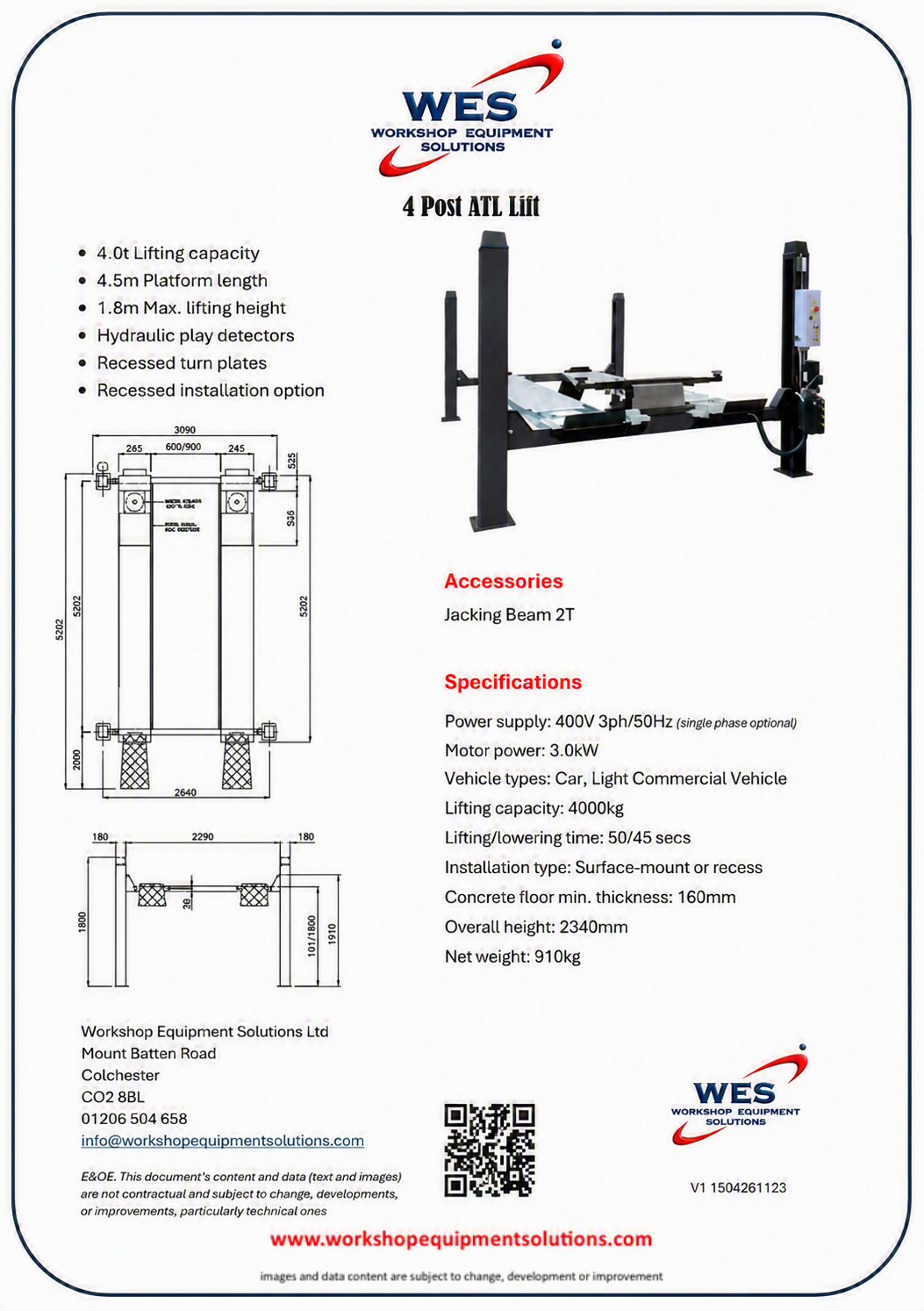

4 Post ATL Lift

  • 4.0t Lifting capacity
  • 4.5m Platform length
  • 1.8m Max. lifting height
  • Hydraulic play detectors
  • Recessed turn plates
  • Recessed installation option

Accessories

Jacking Beam 2T

Specifications

Power supply:
400V3ph/50Hz (single phase optional)
Motor power:
3.0kW
Vehicle types:
Car, Light Commercial Vehicle
Lifting capacity:
4000kg
Lifting/lowering time:
50/45 secs
Installation type:
Surface-mount or recess
Concrete floor min. thickness:
160mm
Overall height:
2340mm
Net weight:
910kg

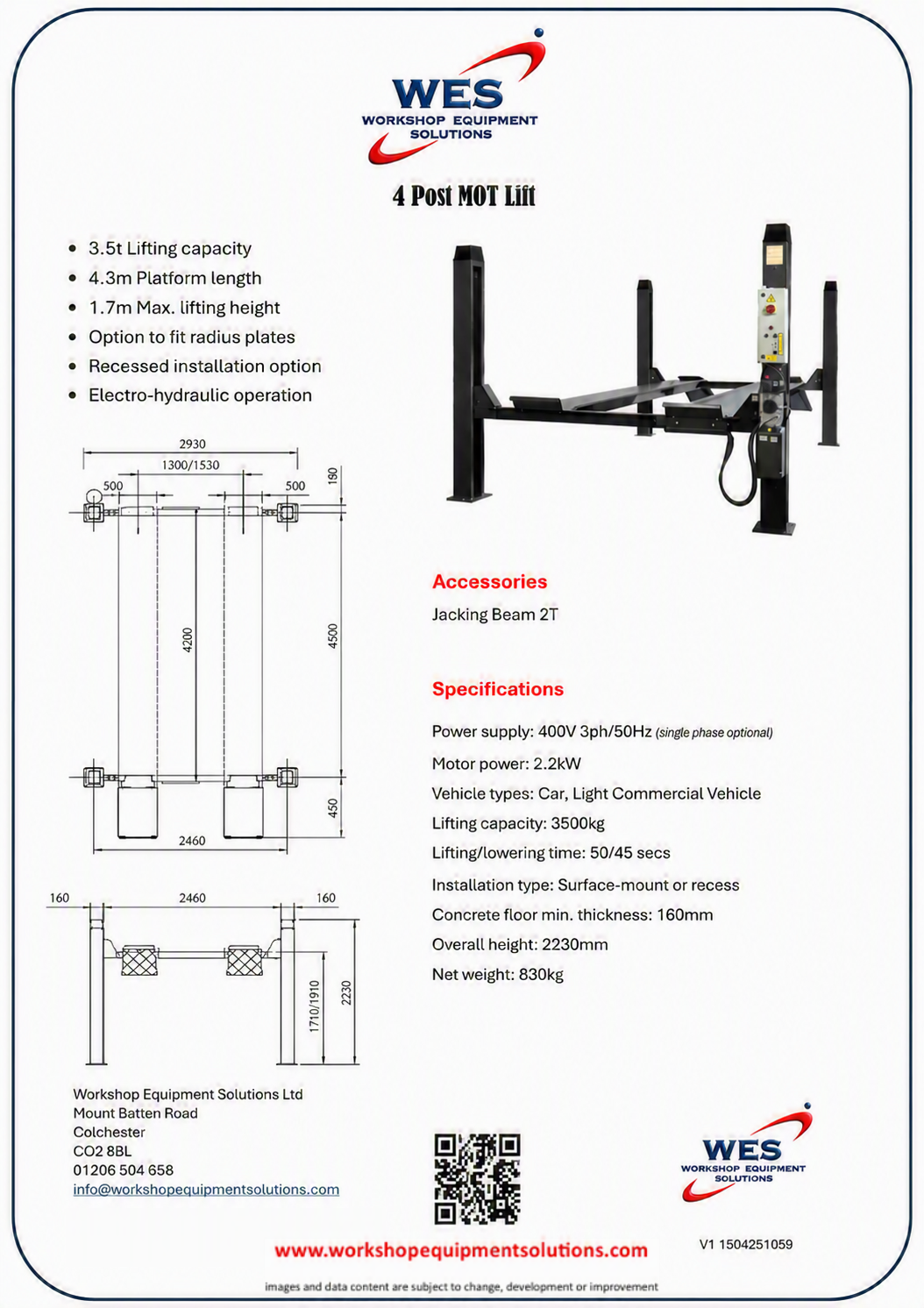

4 Post MOT Lift

  • 3.5t Lifting capacity
  • 4.3m Platform length
  • 1.7m Max. lifting height
  • Option to fit radius plates
  • Recessed installation option
  • Electro-hydraulic operation

Accessories

Jacking Beam 2T

Specifications

Power supply:
400V3ph/50Hz (single phase optional)
Motor power:
2.2kW
Vehicle types:
Car, Light Commercial Vehicle
Lifting capacity:
3500kg
Lifting/lowering time:
50/45 secs
Installation type:
Surface-mount or recess
Concrete floor min. thickness:
160mm
Overall height:
2230mm
Net weight:
830kg

WS94135431

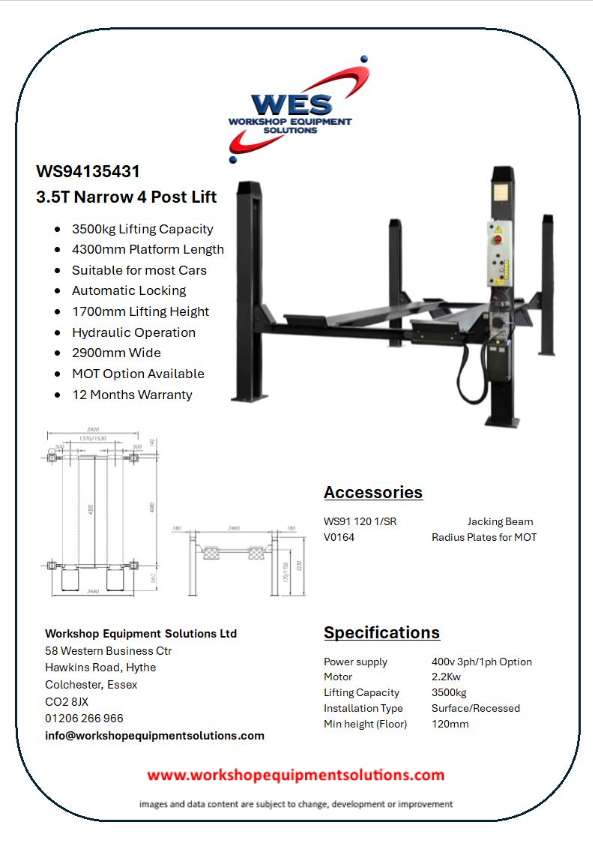

3.5T Narrow 4 Post Lift

  • 3500kg Lifting Capacity
  • 4300mm Platform Length
  • Suitable for most Cars
  • Automatic Locking
  • 1700mm Lifting Height
  • Hydraulic Operation
  • 2900mm Wide
  • MOT Option Available
  • 12 Months Warranty

Accessories

WS91120 1/SR
Jacking Beam
V0164
Radius Plates for MOT

Specifications

Power supply
400v 3ph/1ph Option
Motor
2.2Kw
Lifting Capacity
3500kg
Installation Type
Surface/Recessed
Min height (Floor)
120mm

WS94350522

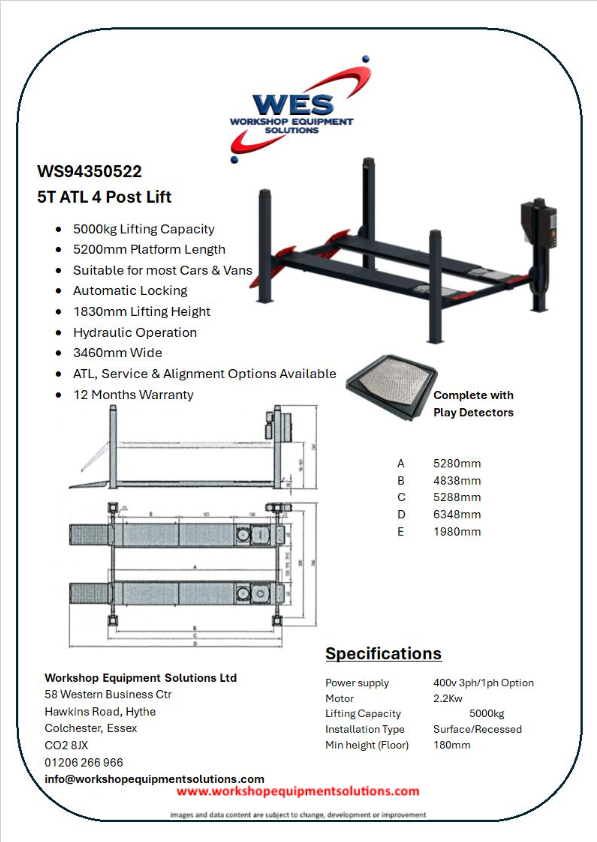

5T ATL 4 Post Lift

  • 5000kg Lifting Capacity
  • 5200mm Platform Length
  • Suitable for most Cars & Vans
  • Automatic Locking
  • 1830mm Lifting Height
  • Hydraulic Operation
  • 3460mm Wide
  • ATL, Service & Alignment Options Available
  • 12 Months Warranty

Complete with Play Detectors

A
5280mm
B
4838mm
C
5288mm
D
6348mm
E
1980mm

Specifications

Power supply
400v 3ph/1ph Option
Motor
2.2Kw
Lifting Capacity
5000kg
Installation Type
Surface/Recessed
Min height (Floor)
180mm

WS94350572

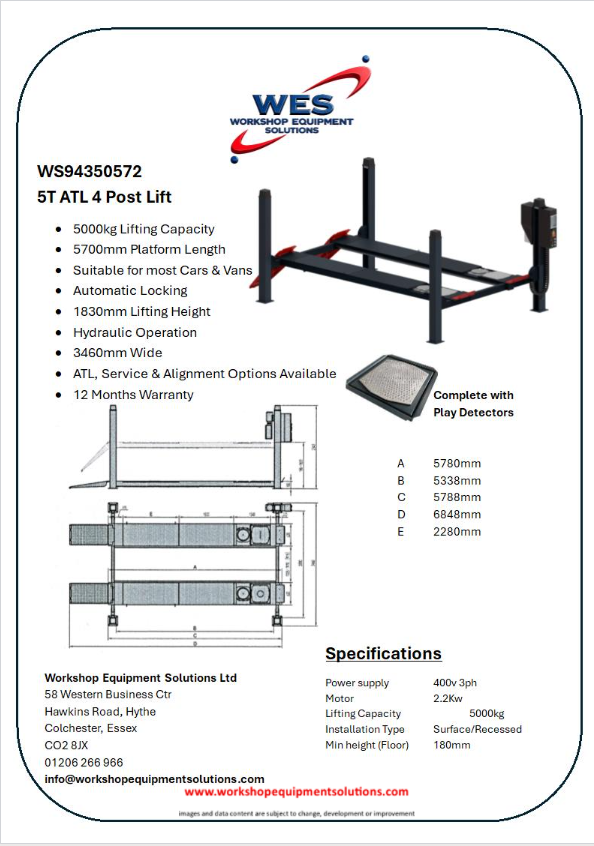

5T ATL 4 Post Lift

  • 5000kg Lifting Capacity
  • 5700mm Platform Length
  • Suitable for most Cars & Vans
  • Automatic Locking
  • 1830mm Lifting Height
  • Hydraulic Operation
  • 3460mm Wide
  • ATL, Service & Alignment Options Available
  • 12 Months Warranty

Complete with Play Detectors

A
5780mm
B
5338mm
C
5788mm
D
6848mm
E
2280mm

Specifications

Power supply
400v 3ph
Motor
2.2Kw
Lifting Capacity
5000kg
Installation Type
Surface/Recessed
Min height (Floor)
180mm

WS94350602

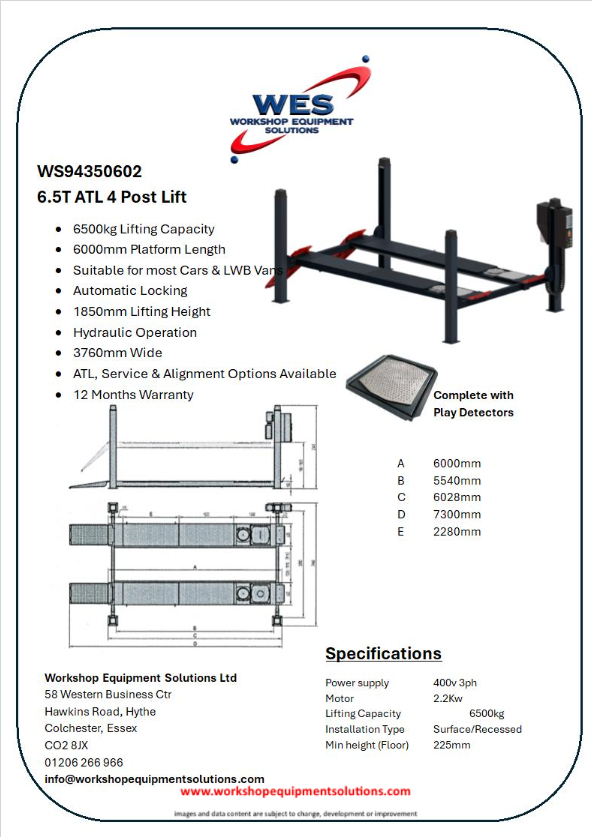

6.5T ATL 4 Post Lift

  • 6500kg Lifting Capacity
  • 6000mm Platform Length
  • Suitable for most Cars & LWB Vans
  • Automatic Locking
  • 1850mm Lifting Height
  • Hydraulic Operation
  • 3760mm Wide
  • ATL, Service & Alignment Options Available
  • 12 Months Warranty

Complete with Play Detectors

A
6000mm
B
5540mm
C
6028mm
D
7300mm
E
2280mm

Specifications

Power supply
400v 3ph
Motor
2.2Kw
Lifting Capacity
6500kg
Installation Type
Surface/Recessed
Min height (Floor)
225mm

Why choose a 4-post lift?

Stable drive-on lifting

Simple loading

Drive-on platforms make positioning straightforward for inspection, servicing and testing.

Workshop versatility

Options for MOT, ATL, wheel alignment and general service work support a wide range of bays.

Vehicle capacity

A choice of platform lengths and capacities supports cars, vans and light commercial vehicles.

Specified around your business

Choosing the right lift

Our team will help you consider the practical details before installation, from vehicle capacity and platform length to floor preparation and testing options.

Supply, installation and support

Let’s find the right 4-post lift for your workshop.
